Designed to support your scientific research, AGM provides highly accurate seeing measurements for your astronomical observations. AGM is a device and software system developed for measuring and analyzing atmospheric seeing during astronomical observations. This system is designed for both amateur astronomers and professional observers, providing highly accurate data.
Target Users
Amateur and professional astronomers
Observatories and research institutes
Educational institutions and science enthusiasts
Areas of Use
Astronomical observations
Atmospheric research
Scientific projects and thesis studies
General Information

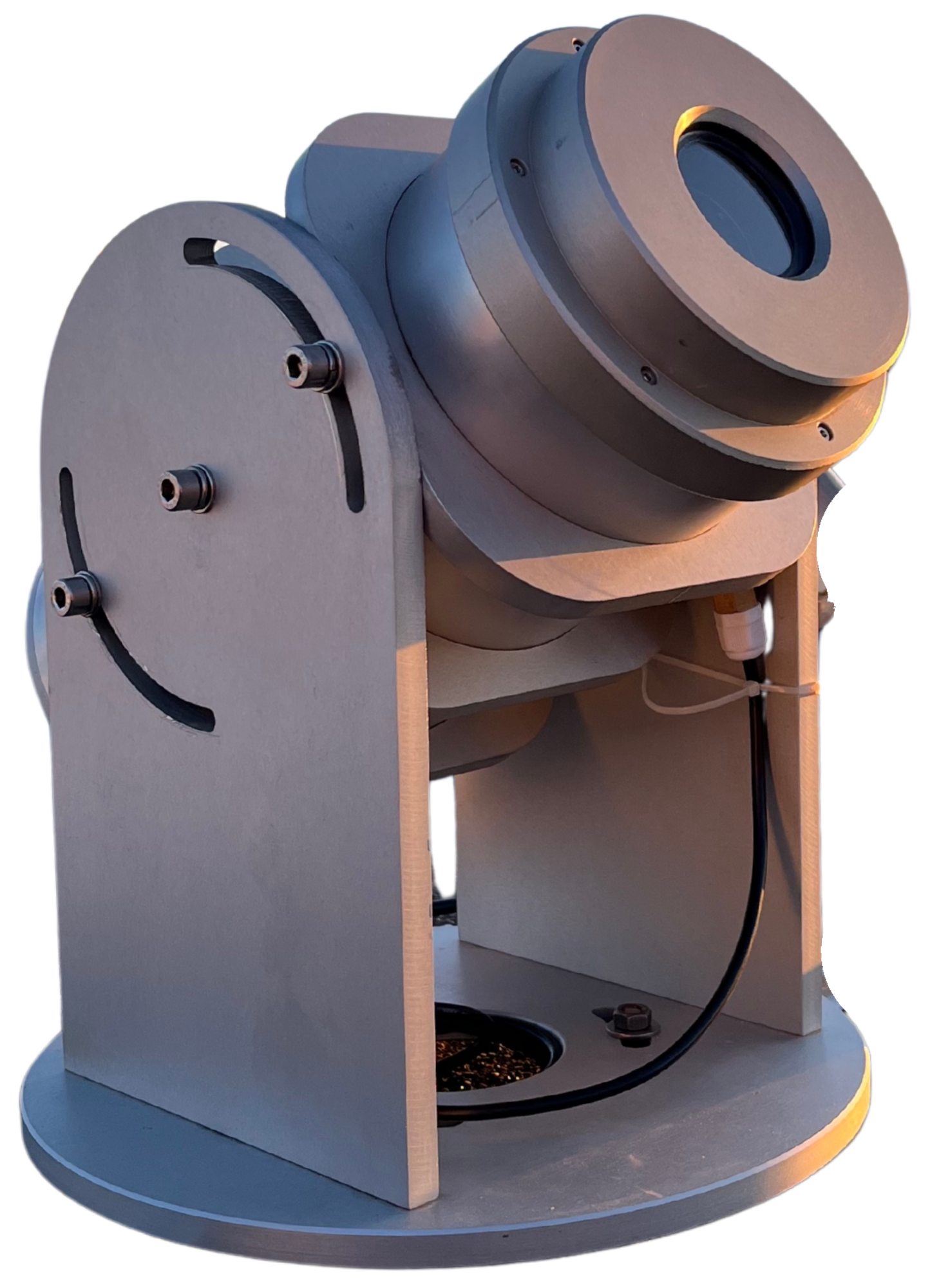

Product Name: Astronomical Seeing Monitor – AGM
Product Code: FST-ASMV1
Manufacturer: FASTRONE Scientific Instruments and Technology Ltd.
Model Number: 20221005
Version: V1.0
Release Date: 2024.03.26
Main Functions
| Real-time measurement of atmospheric scintillation |

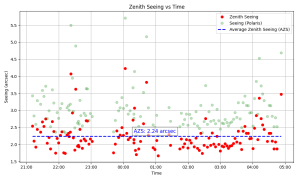

| Provides critical “seeing” values for observatories in arcseconds |

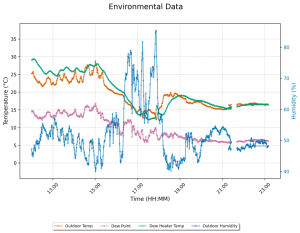

| Instant meteorological data recording (temperature, humidity) |
Technical Specifications
Imaging Sensor
| Type: High-sensitivity CMOS sensor |
| Resolution: 3072 x 2048 |
| Frame Rate: Up to 50 fps at maximum resolution (8-bit) |
Meteorological Sensors
| Temperature Sensor: -40℃~125℃ | ±0.2℃ @ 0℃~90℃ (Typical) |
| Humidity Sensor: 0% RH ~ 100% RH | ±2% RH @ 0% RH ~ 100% RH (at 25℃) |
Key Features
| Ethernet connectivity |
| Remote access capability |
| Embedded software |
| Supported Platforms: All platforms with internet access on the same embedded network |
| IP67-rated socket interfaces |
Enclosure
| Material: Durable aerospace-grade aluminum body |
| Surface Treatment: Natural anodized coating |
| Protection Standard: IP67 |
